Ask user for one or more choices

This custom action displays a dialog box allowing end users to select one or more options (check boxes). It is useful for scenarios like deciding whether to install specific components (see components) or configuring conditional workflows using if/then/else actions.

Properties

Property Name Data Type Description
Caption String The title displayed on the dialog box or in the wizard's instruction panel.
Choice1Title String The text displayed next to the first check box.
Choice1Variable VarName Variable storing the result of choice 1, e.g., %INSTALLIT%.
Choice1Visible Boolean Determines whether the first check box is visible.
Choice2Title String The text displayed next to the second check box.
Choice2Variable VarName Variable storing the result of choice 2, e.g., %INSTALLIT%.
Choice2Visible Boolean Determines whether the second check box is visible.
Choice3Title String The text displayed next to the third check box.
Choice3Variable VarName Variable storing the result of choice 3, e.g., %INSTALLIT%.
Choice3Visible Boolean Determines whether the third check box is visible.
LabelText String Additional text displayed near the check boxes.
PromptText String The question displayed as the dialog's title, asking users for input.

Behavior

  • The dialog displays all check boxes with the Visible property set to True.
  • Check boxes are initially checked if their corresponding variables (e.g., Choice1Variable) are set to 1; otherwise, they are unchecked.
  • When users press OK or Next, the package updates each variable with the user's selection:
  • Checked: Variable value is set to 1.
  • Unchecked: Variable value is set to 0.
  • Pressing Cancel closes the package.

Example

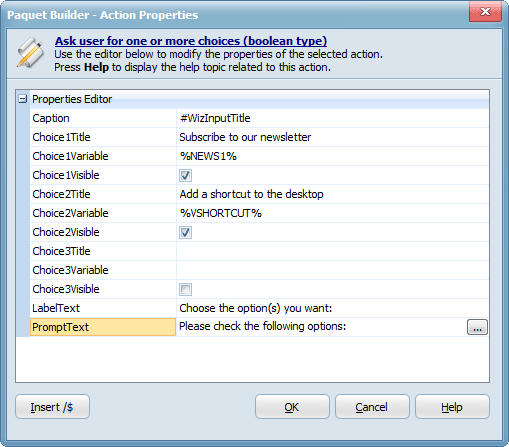

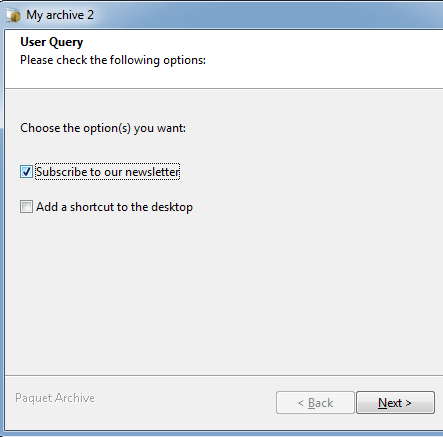

Properties for the screenshot below:

Additional Notes
